1、流体阻力小,密封面受介质的冲刷和侵蚀小(闸板开启高度高);
2、开启较有力,密封性能好,介质流向不受限制,不扰流,不降压力;
3、形体简单,制造工艺性好,适用范围广。
设计规范:GB/T12234
结构长度:GB/T122
连接法兰:JB/T 79、GB/T9113、HG/T20592
试验与检验:GB/T13927、JB/T9092
压力-温度:GB/T 12224
产品型号:Z941H
产品规格:DN40~800mm
压力等级:PN1.6~16.0
适用介质:水、蒸汽、油品、硝酸类、醋酸类等
适用温度:≤550℃

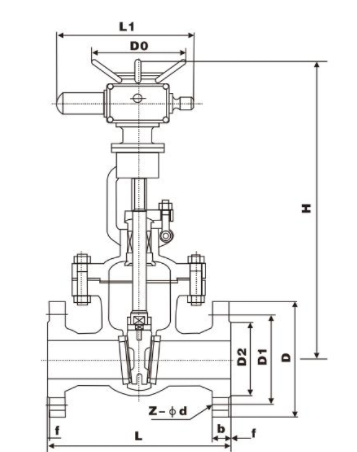

DN(mm) |
L |
D |
D1 |
D2 |
b |
f |
z-Φd |
H |
电动装置 |
WT(Kg) |
Z940H Z941Y -16C Z940Y Z941Y-16P/R/PL/RL Z940W Z941W-16P/R/PL/RL Z940Y Z941Y-16I | ||||||||||
40 | 200 | 145 | 110 | 85 | 16 | 3 | 4-18 | 595 | DZW15 | 53 |
50 | 250 | 160 | 125 | 100 | 16 | 3 | 4-18 | 653 | DZW20 | 59 |
65 | 265 | 180 | 145 | 120 | 18 | 3 | 4-18 | 665 | DZW20 | 62 |
80 | 280 | 195 | 160 | 135 | 18 | 3 | 8-18 | 725 | DZW20 | 74 |
100 | 300 | 215 | 180 | 155 | 20 | 3 | 8-18 | 787 | DZW20 | 92 |
150 | 350 | 280 | 240 | 210 | 24 | 3 | 8-23 | 955 | DZW30 | 161 |
200 | 400 | 335 | 295 | 265 | 26 | 3 | 12-23 | 1105 | DZW30 | 219 |
250 | 450 | 405 | 355 | 320 | 30 | 3 | 12-25 | 1343 | DZW45 | 376 |
300 | 500 | 460 | 410 | 375 | 30 | 3 | 12-25 | 1516 | DZW60 | 484 |
350 | 550 | 520 | 470 | 435 | 34 | 4 | 16-25 | 1678 | DZW60 | 695 |
400 | 600 | 580 | 525 | 485 | 36 | 4 | 16-30 | 1849 | DZW90 | 977 |
450 | 650 | 640 | 585 | 545 | 40 | 4 | 20-30 | 1937 | DZW90 | 1033 |
500 | 700 | 705 | 650 | 608 | 44 | 4 | 20-34 | 2234 | DZW120 | 1087 |
600 | 800 | 840 | 770 | 718 | 48 | 5 | 20-41 | 2432 | DZW180 | 1357 |
700 | 900 | 910 | 840 | 788 | 50 | 5 | 24-41 | 2489 | DZW250 | 1481 |
800 | 1000 | 1020 | 950 | 898 | 52 | 5 | 24-41 | 2643 | D2W350 | 1845 |
注:DN700、DN800的型号为Z942型〇 Note: DN700, DN800 type is Z942.
DN(mm) |
L |
D |
D1 |
D2 |
b |
f |
z-Φd |
H |
电动装置 |
WT(Kg) |
Z940H Z941Y -25C Z940Y Z941Y-25P/R/PL/RL Z940W Z941W-25P/R/PL/RL Z940Y Z941Y-25I | ||||||||||
40 | 200 | 145 | 110 | 85 | 18 | 3 | 4-18 | 595 | DZW15 | 60 |
50 | 250 | 160 | 125 | 100 | 20 | 3 | 4-18 | 653 | DZW20 | 64 |
65 | 265 | 180 | 145 | 120 | 22 | 3 | 4-18 | 665 | DZW20 | 65 |
80 | 280 | 195 | 160 | 135 | 22 | 3 | 8-18 | 725 | DZW20 | 79 |
100 | 300 | 230 | 190 | 160 | 24 | 3 | 8-23 | 787 | DZW20 | 98 |
125 | 325 | 270 | 220 | 188 | 28 | 3 | 8-25 | 902 | DZW30 | 154 |
150 | 350 | 300 | 250 | 218 | 30 | 3 | 8-25 | 955 | DZW30 | 168 |
200 | 400 | 360 | 310 | 278 | 34 | 3 | 12-25 | 1105 | DZW45 | 219 |
250 | 450 | 425 | 370 | 332 | 36 | 3 | 12-30 | 1343 | DZW45 | 390 |
300 | 500 | 485 | 430 | 390 | 40 | 4 | 16-30 | 1516 | DZW60 | 505 |
350 | 550 | 550 | 490 | 448 | 44 | 4 | 16-34 | 1678 | DZW60 | 736 |
400 | 600 | 610 | 550 | 505 | 48 | 4 | 16-34 | 1849 | DZW90 | 1027 |
450 | 650 | 660 | 600 | 555 | 50 | 4 | 16-34 | 1937 | DZW90 | 1139 |
500 | 700 | 730 | 660 | 610 | 52 | 4 | 20-34 | 2234 | DZW120 | 1228 |
600 | 800 | 840 | 770 | 718 | 56 | 5 | 20-41 | 2432 | DZW180 | 1502 |
700 | 900 | 955 | 875 | 815 | 60 | 5 | 20-41 | 2489 | DZW250 | 1617 |
800 | 1000 | 1070 | 990 | 930 | 64 | 5 | 24-48 | 2643 | DZW350 | 1923 |
DN(mm) |
L |
D |
D1 |
D2 |
D6 |
b |
z-Φd |
f |
f2 |
H |
电动装置 |
WT(Kg) |
Z940H Z941Y -40C Z940Y Z941Y-40P/R/PL/RL Z940W Z941W-40P/R/PL/RL Z940Y Z941Y-40I | ||||||||||||
40 | 200 |
145 | 110 | 85 | 76 | 18 | 4-18 | 3 | 4 | 617 | DZW15 | 62 |
50 | 250 | 160 | 125 | 100 | 88 | 20 | 4-18 | 3 | 4 | 665 | DZW20 | 66 |
65 | 280 | 180 | 145 | 120 | 110 | 22 | 8-18 | 3 | 4 | 680 | DZW20 | 68 |
80 | 310 | 195 | 160 | 135 | 121 | 22 | 8-18 | 3 | 4 | 752 | DZW20 | 80 |
100 | 350 | 230 | 190 | 160 | 150 | 24 | 8-23 | 3 | 4.5 | 846 | DZW30 | 108 |
150 | 450 | 300 | 250 | 218 | 204 | 30 | 8-25 | 3 | 4.5 | 1087 | DZW45 | 258 |
200 | 550 | 375 | 320 | 282 | 260 | 38 | 12-30 | 3 | 4.5 | 1243 | DZW45 | 366 |
250 | 650 | 445 | 385 | 345 | 313 | 42 | 12-34 | 3 | 4.5 | 1429 | DZW60 | 472 |
300 | 750 | 510 | 450 | 408 | 364 | 46 | 16-34 | 4 | 4.5 | 1608 | DZW90 | 673 |
350 | 850 | 570 | 510 | 465 . | 422 | 52 | 16-34 | 4 | 5 | 1738 | DZW90 | 804 |
400 | 950 | 655 | 585 | 535 | 474 | 58 | 16-41 | 4 | 5 | 1897 | DZW120 | 1081 |
450 | 1050 | 680 | 610 | 560 | 524 | 60 | 20-41 | 4 | 5 | 2104 | DZW120 | 1259 |
500 | 1150 | 755 | 670 | 612 | 576 | 62 | 20-48 | 4 | 5 | 2401 | DZW180 | 1348 |
DN(mm) |
L |
D |
D1 |
D2 |
D6 |
b |
z-Φd |
f |
f2 |
H |
电动装置 |
WT(Kg) |
Z940H Z941Y -64C Z940Y Z941Y-64P/R/PL/RL Z940W Z941W-64P/R/PL/RL Z940Y Z941Y-64I | ||||||||||||
50 | 250 | 175 | 135 | 105 | 88 | 26 | 4-23 | 3 | 4 | 667 | DZW20 | 68 |
65 | 280 | 200 | 160 | 130 | 110 | 28 | 8-23 | 3 | 4 | 685 | DZW20 | 72 |
80 | 310 | 210 | 170 | 140 | 121 | 30 | 8-23 | 3 | 4 | 748 | DZW30 | 88 |
100 | 350 | 250 | 200 | 168 | 150 | 32 | 8-25 | 3 | 4.5 | 845 | DZW30 | 117 |
150 | 450 | 340 | 280 | 240 | 204 | 38 | 8-34 | 3 | 4.5 | 1009 | DZW45 | 314 |
200 | 550 | 405 | 345 | 300 | 260 | 44 | 12-34 | 3 | 4.5 | 1253 | DZW60 | 432 |
250 | 650 | 470 | 400 | 345 | 313 | 48 | 12-41 | 3 | 4.5 | 1449 | DZW60 | 595 |
300 | 750 | 530 | 460 | 412 | 361 | 54 | 16-41 | 4 | 4.5 | 1867 | DZW90 | 721 |
350 | 850 | 595 | 525 | 475 | 422 | 60 | 16-41 | 4 | 5 | 1931 | DZW120 | 863 |
400 | 950 | 670 | 585 | 525 | 474 | 66 | 16-48 | 4 | 5 | 2017 | DZW180 | 1129 |
500 | 1150 | 800 | 705 | 640 | 576 | 70 | 20-54 | 4 | 5 | 2459 | DZW250 | 1493 |
DN(mm) |
L |
D |
D1 |
D2 |
D6 |
b |
z-Φd |
f |
f2 |
H |
电动装置 |
WT(Kg) |
Z940H Z941Y -100C Z940Y Z941Y-100P/R/PL/RL Z940W Z941W-100P/R/PL/RL Z940Y Z941Y-100I | ||||||||||||
50 | 250 | 195 | 145 | 112 | 88 | 28 | 4-25 | 3 | 4 | 781 | DZW20 | 78 |
65 | 280 | 220 | 170 | 138 | 110 | 32 | 8-25 | 3 | 4 | 830 | DZW20 | 96 |
80 | 310 | 230 | 180 | 148 | 121 | 34 | 8-25 | 3 | 4 | 865 | DZW30 | 126 |
100 | 350 | 265 | 210 | 172 | 150 | 38 | 8-30 | 3 | 4.5 | 1179 | DZW30 | 134 |
150 | 450 | 350 | 290 | 250 | 204 | 46 | 12-34 | 3 | 4.5 | 1201 | DZW60 | 352 |
200 | 550 | 430 | 360 | 312 | 260 | 54 | 12-41 | 3 | 4.5 | 1611 | DZW90 | 484 |
250 | 650 | 500 | 430 | 382 | 313 | 60 | 12-41 | 3 | 4.5 | 1903 | DZW90 | 608 |
300 | 750 | 585 | 500 | 442 | 364 | 70 | 16-48 | 4 | 4.5 | 2054 | DZW120 | 757 |
350 | 850 | 655 | 560 | 498 | 422 | 76 | 16-54 | 4 | 5 | 2132 | DZW180 | 994 |
400 | 950 | 715 | 620 | 558 | 474 | 80 | 16-54 | 4 | 5 | 2321 | DZW250 | 1269 |
DN(mm) |
L |
D |
D1 |
D2 |
D6 |
b |
z-Φd |
f |
f2 |
H |
电动装置 |
WT(Kg) |
Z940H Z941Y -1600C Z940Y Z941Y-160P/R/PL/RL Z940W Z941W-160P/R/PL/RL Z940Y Z941Y-160I | ||||||||||||
50 | 300 | 215 | 165 | 132 | 88 | 36 | 8-25 | 3 | 4 | 905 | DZW20 | 101 |
65 | 340 | 245 | 190 | 152 | 110 | 44 | 8-30 | 3 | 4 | 968 | DZW20 | 137 |
80 | 390 | 260 | 205 | 168 | 121 | 46 | 8-30 | 3 | 4 | 978 | DZW30 | 167 |
100 | 450 | 300 | 240 | 200 | 150 | 48 | 8-34 | 3 | 4.5 | 1043 | DZW30 | 211 |
125 | 525 | 355 | 285 | 238 | 176 | 60 | 8-41 | 3 | 4.5 | 1248 | DZW60 | 424 |
150 | 600 | 390 | 318 | 270 | 204 | 66 | 12-41 | 3 | 4.5 | 1394 | DZW90 | 588 |
200 | 750 | 480 | 400 | 345 | 260 | 78 | 12-48 | 3 | 4.5 | 1621 | DZW120 | 839 |
